Features

HEWTECH/HIKAM DC Wiring Harness is an optimized solution to
combined strings of Fist Solar Series 4 modules mounted on Fixed Tilt
or Tracker structures

Built for First Solar Series 4 Modules

- Designs for 1500V and 1000V system architecture
- Designs for all structures
- Designs with many wire color & gauge options (#8 - #12)

Reduces BOS Cost

- Reduces BOS cost by aggregating strings in parallel
- Reduces electrical field labor with pre-manufactured harnesses
- Product Roadmap includes innovations to improve cost

Certifications

- UL 9703 Listed Product
- EN50618 compliant
- UL4703 PV Wire, UL2579 Fuses, UL6703 Connectors

100% electrically 5 point tested

- Ensuring harnesses are functional and defect free

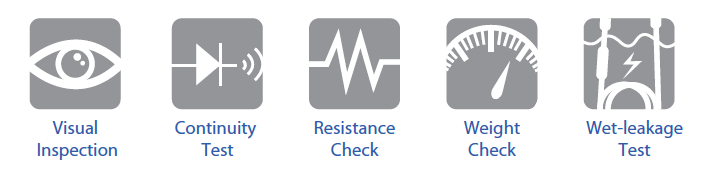

- Visual Inspection, Continuity Test, Resistance check, weight check,
wet-leakage testing (<1 μA)

5-year standard workmanship warranty

- Accelerated environmental chamber testing to simulate 25 year life

Global Manufacturing

- Mexicali, Mexico; Guasave, Mexico; Shenzhen, China

Product Information

Wiring Harness Product Information (1,2)
Harness Dimension
(module x string)
Module Type kW / Homerun String Count In-line fuse rating Isc per harness Connector Type
3 x 1 Series 4 5.4 kW 3 4A 8.7 A MC4
4 x 1 Series 4 7.2 kW 4 4A 11.6 A MC4
5 x 1 Series 4 9.0 kW 5 4A 14.5 A MC4
3 x 2 Series 4 10.8 kW 6 4A 17.3 A MC4
6 x 1 Series 4 10.8 kW 6 4A 17.3 A MC4
7 x 1 Series 4 12.6 kW 7 4A 20.2 A MC4
4 x 2 Series 4 14.4 kW 8 4A 23.1 A MC4
3 x 3 Series 4 16.2 kW 5 4A 26.0 A MC4
5 x 2 Series 4 18.0 kW 5 4A 28.9 A MC4

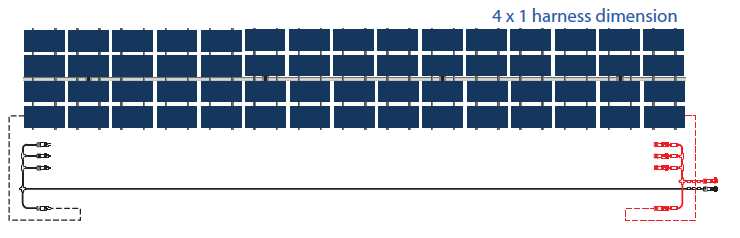

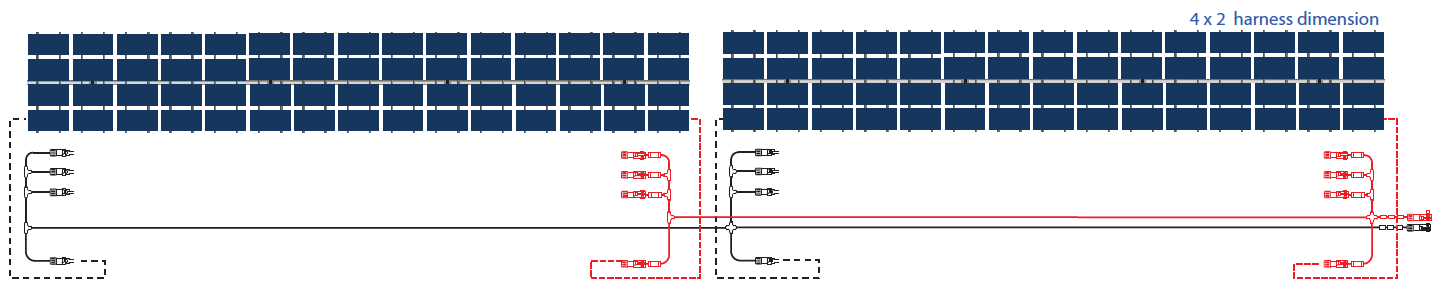

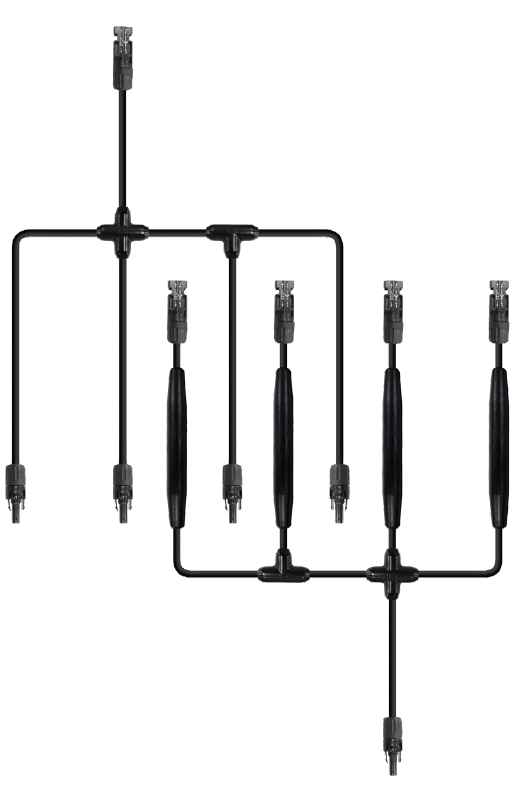

Application Example

1. kW / Homerun assumes 120W Series 4 Module and 15 modules per string
2. Isc per harness based on NEC current factor of 1.5625. National and local adjustments will vary
3. Structural designs differ based on project specifics. Consult your Hewtech / Hikam representative before purchasing

Features

HEWTECH/HIKAM DC Wiring Harness is an optimized solution to
combined strings of Fist Solar Series 6 modules mounted on Fixed Tilt
or Tracker structures

Built for First Solar Series 6 Modules

- Designs for 1500V and 1000V system architecture
- Designs for all structures
- Designs with many wire color & gauge options (#8 - #12)

Reduces BOS Cost

- Reduces BOS cost by aggregating strings in parallel
- Reduces electrical field labor with pre-manufactured harnesses
- Product Roadmap includes innovations to improve cost

Certifications

- UL 9703 Listed Product
- EN50618 compliant
- UL4703 PV Wire, UL2579 Fuses, UL6703 Connectors

100% electrically 5 point tested

- Ensuring harnesses are functional and defect free
- Visual Inspection, Continuity Test, Resistance check, weight check,
wet-leakage testing (<1 μA)

5-year standard workmanship warranty

- Accelerated environmental chamber testing to simulate 25 year life

Global Manufacturing

- Mexicali, Mexico; Guasave, Mexico; Shenzhen, China

Product Information

Wiring Harness Product Information (1,2)
Harness Dimension
(module x string)
Module Type kW / Homerun String Count In-line fuse rating Isc per harness Connector Type
1 x 4 Series 6 10.3 kW 4 6A 16.6 A MC4 or MC4 EVO2
1 x 5 Series 6 12.9 kW 5 6A 20.7 A MC4 or MC4 EVO2
1 x 6 Series 6 15.5 kW 6 6A 24.8 A MC4 or MC4 EVO2
2 x 3 Series 6 15.5 kW 6 6A 24.8 A MC4 or MC4 EVO2
3 x 2 Series 6 15.5 kW 6 6A 24.8 A MC4 or MC4 EVO2
1 x 7 Series 6 18.1 kW 7 6A 29.0 A MC4 or MC4 EVO2
1 x 8* Series 6 20.6 kW 8 6A 33.1 A MC4 or MC4 EVO2
2 x 4* Series 6 20.6 kW 8 6A 33.1 A MC4 or MC4 EVO2
4 x 2* Series 6 20.6 kW 8 6A 33.1 A MC4 or MC4 EVO2

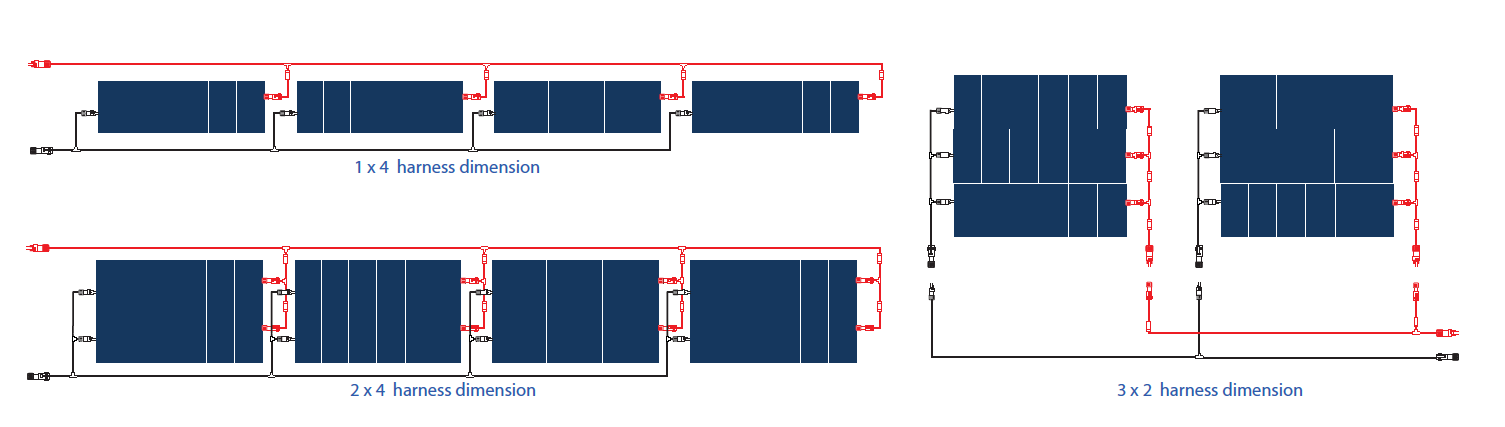

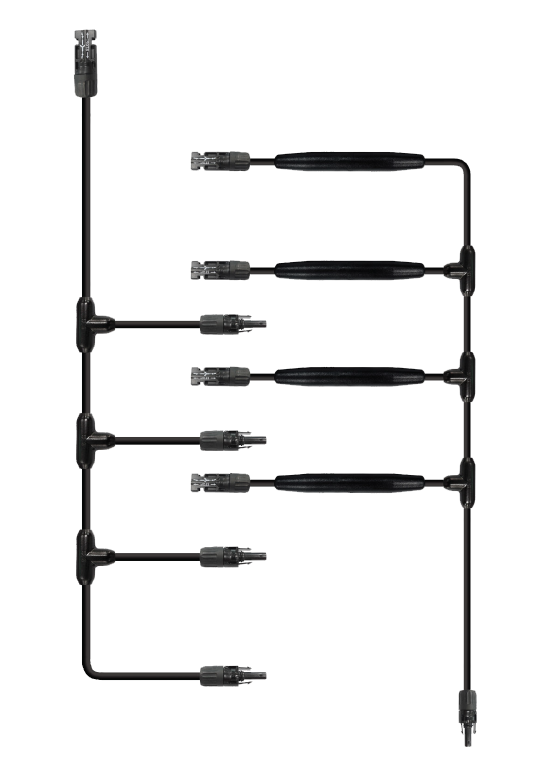

Application Examples

1. kW / Homerun assumes 120W Series 4 Module and 15 modules per string
2. Isc per harness based on NEC current factor of 1.5625. National and local adjustments will vary
3. Structural designs differ based on project specifics. Consult your Hewtech / Hikam representative before purchasing

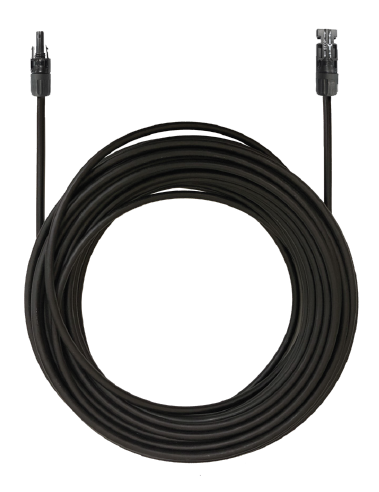

String Jumpers

Built for PV System interconnections

- Designs for 1500V and 1000V system architecture
- Designs for all structures
- Designs with many wire color & gauge options (#8 - #12)

Certifications

- UL 9703 Listed Product
- EN50618 compliant
- UL4703 PV Wire, UL2579 Fuses, UL6703 Connectors

100% electrically 5 point tested

- Ensuring harnesses are functional and defect free
- Visual Inspection, Continuity Test, Resistance check, weight check,
wet-leakage testing (<1 μA)

5-year standard workmanship warranty

- Accelerated environmental chamber testing to simulate 25 year life

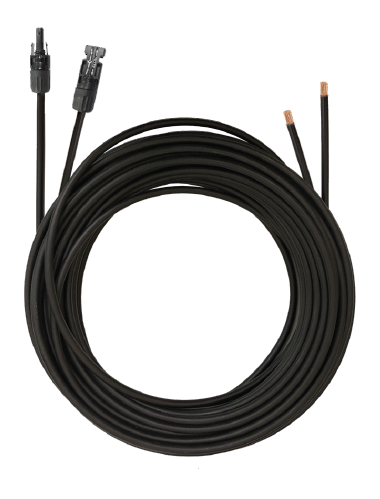

Whips (Pig Tails)

Built for PV System interconnections

- Designs for 1500V and 1000V system architecture
- Designs for all structures
- Designs with many wire color & gauge options (#8 - #12)

Certifications

- UL 9703 Listed Product
- EN50618 compliant
- UL4703 PV Wire, UL2579 Fuses, UL6703 Connectors

100% electrically 5 point tested

- Ensuring harnesses are functional and defect free
- Visual Inspection, Continuity Test, Resistance check, weight check,
wet-leakage testing (<1 μA)

5-year standard workmanship warranty

- Accelerated environmental chamber testing to simulate 25 year life

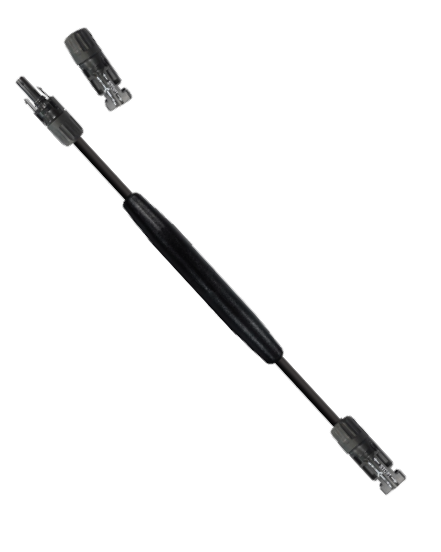

Replacement In-Line Fuse (RILF) Kit

Built for PV System interconnections

- Designs for 1500V and 1000V system architecture
- Designs for all structures
- Designs with many wire color & gauge options (#8 - #12)

Certifications

- UL 9703 Listed Product
- EN50618 compliant
- UL4703 PV Wire, UL2579 Fuses, UL6703 Connectors

100% electrically 5 point tested

- Ensuring harnesses are functional and defect free
- Visual Inspection, Continuity Test, Resistance check, weight check,
wet-leakage testing (<1 μA)

5-year standard workmanship warranty

- Accelerated environmental chamber testing to simulate 25 year life
